ThermoSphere (United Kingdom)

Thermonet features 3.5mm TwistedTwin cable, self-adhesive mesh and low-profile cold tail connection cable. These features make up what we call LayFlat Technology because this combination neutralises tension in the finished product and makes Thermonet easier to fit.


Thermonet underfloor heating cables have a tough fluoropolymer coating on the outside and internal conductors, a continuous armoured earth sheath and multi-shrand twin conductors.


The conductors as twisted together to eliminate electromagnetic field (EMF) and neutralise the stress, expansion and contractions of the cable along the entire length; resulting in a more robust longer lasting cable.

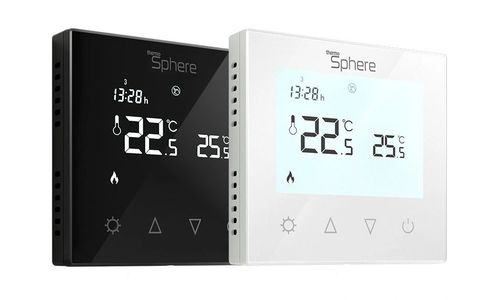

SCP-B-01

Thermo Touch Control Single


Unique features of the ThermoTouch Single include:


  • 7 day 6 event schedule
  • Easy to use touch display
  • Ambient & floor temperature sensing
  • Energy saving adaptive start
  • Automatic open window sensor
  • Wireless models available


Size :        85 x 85 x 46mm (31mm in wall)

IP Rating: IP30

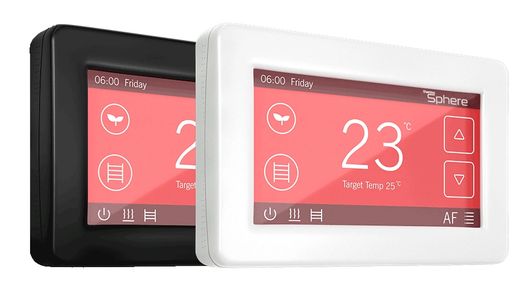

Thermo Touch Control Dual


Unique features of the ThermoTouch Dual include:


  • Control your electric underfloor heating with a 7 day 6 event schedule
  • Control an extra appliance such as an electric towel rail or mirror heater in one thermostat
  • Easy upgrade - works with all of the most common floor sensor probes
  • Smart energy saving features - Adaptive start and open window sensor
  • Wireless models available


Size :        129 x 88 x 48mm (31mm in wall)

IP Rating: IP30

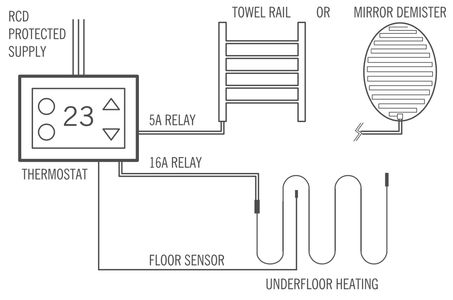

Dual relay control:


  • 16A relay for underfloor heating
  • 5A relay for additional appliance
  • Maximum combined load 20A
  • Control any electrical device with a
    230V switch live
  • Use a 12V transformer for low
    voltage devices
  • 5A relay does not work in tandem
    with the temperature sensors


150W & 200W/m2

Can be installed under ceramic, porcelain, slate and natural stone tiles. When using laminate, engineered timber or vinyl floors a self-levelling compound should be used.

Contact +852 6805 3872

Features

Specification

Specification

  • Full Self-adhesive mesh
  • Heating cable protection
  • Twin conductor heating cable
  • Suitable for most floor surfaces
  • Minimal height bulid-up

Specification

Specification

Specification

  • Cable thickness: 3.5mm
  • Output: 200W/m2
  • Operating voltage: 150/225V
  • Cold tail connection lead: 5m

BROCHURE & DATA SHEET

ThermoSphere Floor Heating Brochure (pdf)下載
ThermoSphere Heating Mesh Data Sheet (pdf)下載
Thermosphere Control-Touch (pdf)下載
